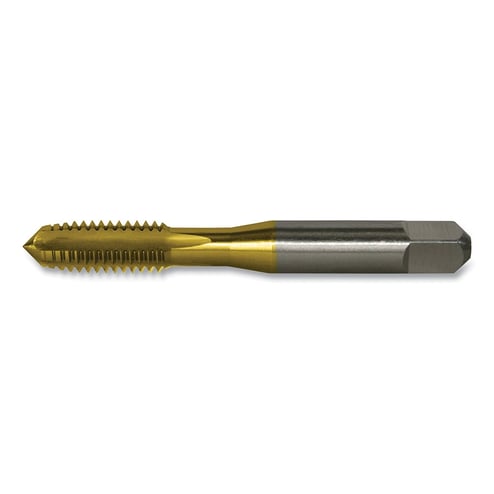

TiN Plug Straight Flute Hand Taps, 4FL, 9/16'-18 Tool Size, UNF

890-306754

Product Description

Taps with TiN coating protects them from wear and allows them to be used at higher speeds than taps with a bright finish. Non-coolant-through taps do not have coolant holes, so a separate hose is required to bring coolant to the cutting area if it is needed. Plug tap chamfer.

Specifications

Applicable Materials Cast Iron; Stainless Steel; Steel
Cutting Direction Right
End Shape Square
Length [Nom] 3-3/32 in
Material High Speed Steel
Measuring System Imperial
No. of Flutes 4
Outside Diam [Nom] 9/16 in
Packing Type Snap Pack
Quantity 1 EA /EA
Shank Size Symbol Square
Style HTGP-TN
Tap Size 9/16-18 UNF
Tap Type Straight Flute Hand Tap
Thread - TPI or Pitch 18
Thread Pitch [Nom] 18
Type UNF
Prop65 WARNING: This product can expose you to Lead
Thread Size [Nom] 9/16/2025 12:00:00 AM
