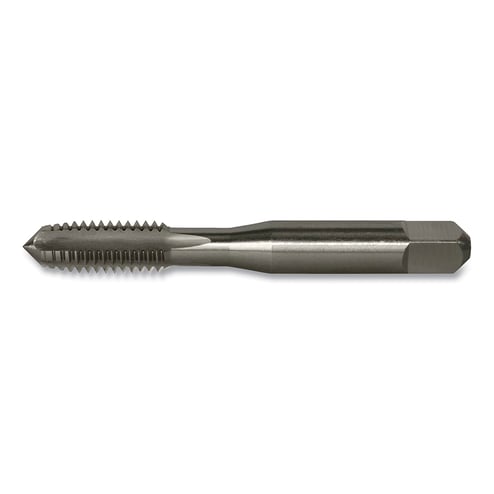

TiN Bottoming Straight Flute Hand Taps, 4FL, 1/4'-20 Tool Size, UNC


Product Description

Taps with TiN coating protects them from wear and allows them to be used at higher speeds than taps with a bright finish. Non-coolant-through taps do not have coolant holes, so a separate hose is required to bring coolant to the cutting area if it is needed. Bottoming tap chamfer.

Specifications

Applicable Materials Cast Iron; Stainless Steel; Steel
Cutting Direction Right
End Shape Square
Length [Nom] 2-1/2 in
Material High Speed Steel
Measuring System Imperial
No. of Flutes 4
Outside Diam [Nom] 1/4 in
Packing Type Snap Pack
Quantity 1 EA /EA
Shank Size Symbol Square
Style HTGP-TN
Tap Size 1/4-20 UNC
Tap Type Straight Flute Hand Tap
Thread - TPI or Pitch 20
Thread Pitch [Nom] 20
Thread Size [Nom] 1/4",,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,UNC,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 890-305693,890-305693,Bright Taper Straight Flute Hand Taps
Thread Standard 4FL
Threads Per Inch [Max] 3/8'-16 Tool Size
Threads Per Inch [Min] UNC"
Threads Per Inch [Nom] GREENFIELD THREADING
Throat Depth [Max] Default > Hand Tools > Pipe Threading Equipment > Taps & Dies
Throat Depth [Min] Simple
Throat Depth [Nom] Published
Tilt (Degrees) 305693
Tine Length Taps with bright finish provides a smooth, polished surface. Taper tap chamfer.
Tine Shape 890-305693
Torque Increment Cast Iron; Stainless Steel; Non-ferrous ; Aluminum; Steel
