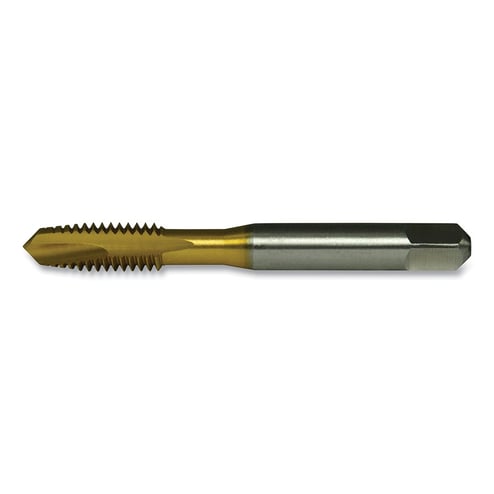

TiN Bottoming Spiral Point Machine Tap, 2FL, 1/4 in-20 Tool Size, UNC


Product Description

The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish. UNC taps perform better in threading applications on brittle materials and are less likely to cross thread. UNF taps perform better in threading applications on thin-walled workpieces and hard materials.

Specifications

Applicable Materials Stainless Steel; Steel
Cutting Direction Right
End Shape Square
Length [Nom] 2-1/2 in
Material HSS
Measuring System Imperial
No. of Flutes 2
Outside Diam [Nom] 1/4 in
Packing Type Snap Pack
Quantity 1 EA / EA
Shank Size Symbol Square
Style SPGP-TN
Tap Size 1/4-20 UNC
Tap Type Spiral Point Tap
Thread - TPI or Pitch 20
Thread Pitch [Nom] 20
Thread Size [Nom] 1/4 in
Type UNC
Prop65 WARNING: This product can expose you to LEAD, NICKEL, COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
