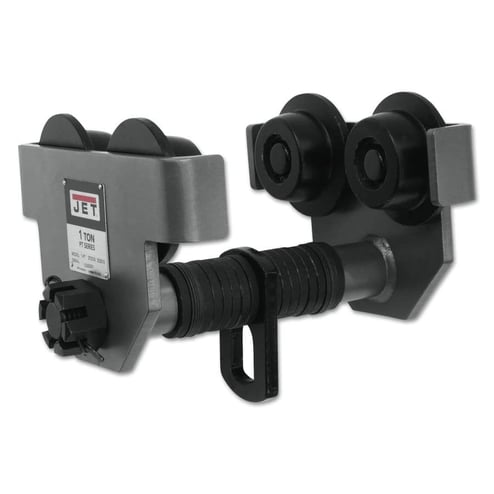

PT Series Plain Trolley, 1 Ton, 3' - 8' Beam Width


Product Description

Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection. Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement. Built-in bumper guards on the side plates increase safety and extend trolley life. Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers.

Specifications

Beam Height [Max] 19 in
Beam Height [Min] 4 in
Beam Width [Max] 8 in
Beam Width [Min] 3 in
Corner Radius [Min] 39 in
Load Cap. [Max] 1 ton
Load Cap. [Nom] 1 ton
Type Manual Dragged Trolley
Wt. 33 lb
Prop65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
