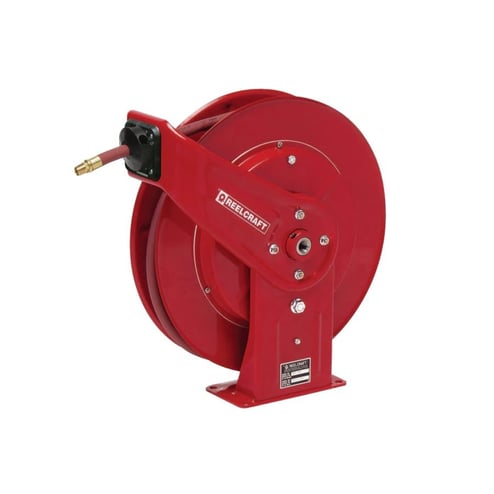

Heavy Duty Spring Retractable Hose Reels, 3/8 in x 70 ft


Product Description

The steel guide arm and base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Individually powder coated components offer the maximum protection from premature corrosion.

Specifications

Height [Nom] 20-1/4 in
Hose I.D. [Nom] 3/8 in
Hose Length 70 ft
Hose O.D. [Nom] 0.6 in
Inlet Size 1/2 in NPT(F)
Length [Nom] 19 in
Material Steel
Operating Pressure [Nom] 300 psi
Outlet Size 1/4 in NPT(M)
Type Low Pressure Air/Water Reels
Width [Nom] 6-1/8 in
Prop65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
