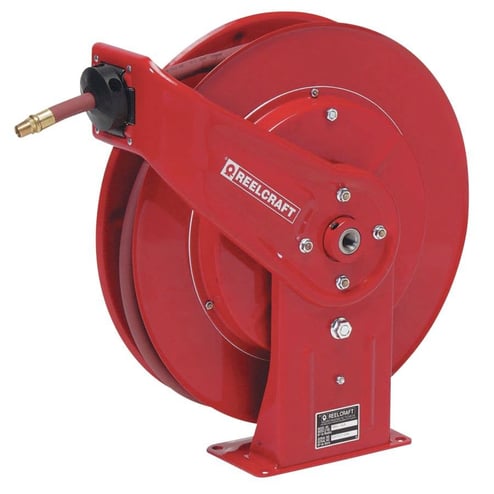

Heavy Duty Spring Retractable Hose Reel, 3/8 in x 50 ft


Product Description

The steel guide arm and base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Individually powder coated components offer the maximum protection from premature corrosion.

Specifications

Height [Nom] 20-1/4 in
Hose I.D. [Nom] 3/8 in
Hose Length 50 ft
Hose O.D. [Nom] 0.6 in
Inlet Size 1/2 NPT(F)
Length [Nom] 19-3/4 in
Operating Pressure [Nom] 300 psi
Outlet Size 1/4 NPT (M)
Width [Nom] 7 in
Wt. 43 lb
