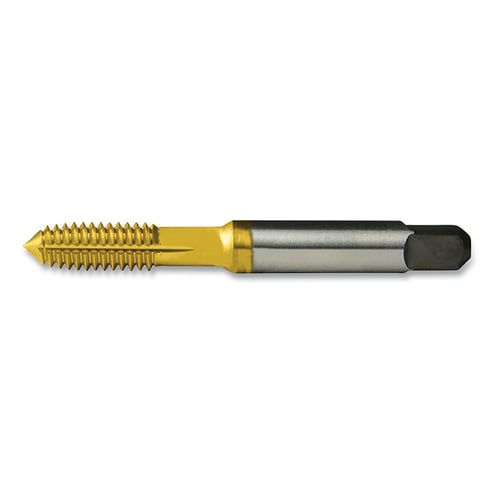

FTGP-TN Bottom Thread Forming Tap, M6x1.0 Tap Size, TiN Finish, 63.5 mm OAL


Product Description

Ground thread for economical tapping. Straight with square shank configuration. Applicable on steel and non-ferrous materials. The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish.

Specifications

Applicable Materials N: Non-ferrous (Aluminum);P: Steel
Cutting Direction Right
End Shape Square
Length [Nom] 63.5 mm
Material High Speed Steel
Measuring System Metric
Outside Diam [Max] 0.2362 in
Packing Type Snap Pack
Quantity 1 EA / EA
Shank Size Symbol Square
Style FTGP-TN
Tap Size M6x1.0
Tap Type Machine Tap
Thread - TPI or Pitch 1
Thread Pitch [Nom] 1
Thread Size [Nom] M6
Type Thread Forming Tap
Prop65 WARNING: This product can expose you to LEAD, NICKEL, COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
