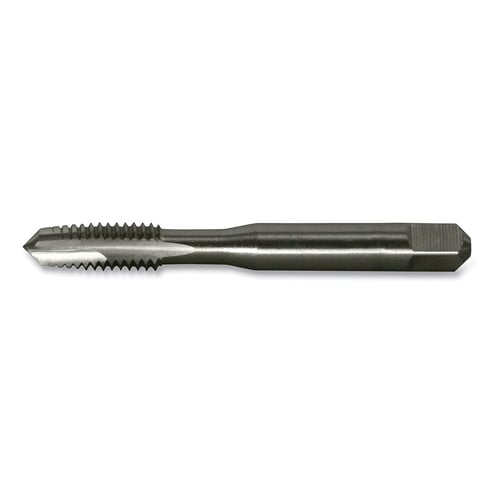

Bright Plug Spiral Point Machine Tap, 2FL, #10-24 Tool Size, UNC


Product Description

The bright finish on these taps provides a smooth, polished surface. Coarse threads can also withstand more physical abuse than fine threads. UNC taps perform better in threading applications on brittle materials and are less likely to cross thread. UNF taps perform better in threading applications on thin-walled workpieces and hard materials.

Specifications

Applicable Materials Non-ferrous ; Aluminum; Steel
Cutting Direction Right
End Shape Square
Length [Nom] 2.38 in
Material HSS
Measuring System Imperial
No. of Flutes 2
Outside Diam [Nom] 0.19 in
Packing Type Snap Pack
Quantity 1 EA / EA
Shank Size Symbol Square
Style SPGP
Tap Size #10-24 UNC
Tap Type Spiral Point Tap
Thread - TPI or Pitch 24
Thread Pitch [Nom] 24
Thread Size [Nom] #10
Type UNC
Prop65 WARNING: This product can expose you to LEAD, NICKEL, COBALT, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
