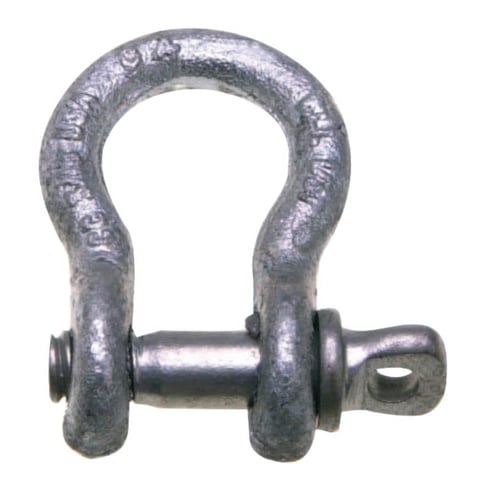

419 Series Anchor Shackles, 3/8 in Bail Size, 10 Tons, Screw Pin Shackle
419 Series Anchor Shackles, 3/8 in Bail Size, 10 Tons, Screw Pin Shackle
SKU: 193-5410635
Manufacturer Part Number: 5410635
Product Description
Specifications
| BailSize | 3/8 in |
| EyeOuterSize | 15/16 in |
| Finish | Galvanized Zinc |
| InnerLengthNom | 1 7/16 in |
| InnerWidthNom | 31/32 in |
| LockingType | Threaded Pin |
| Material | Forged Carbon Steel |
| OpeningSizeNom | 21/32 in |
| PinSizeNom | 7/16 in |
| SKUGroupAuto-ID | 203785 |
| Type | Screw Pin Shackle |
| WorkingLoadLimit | 2,000 lb |
| Wt | 0.3 lb |
| Bail Size | 3/8 in |
| Eye Outer Size | 15/16 in |
| Finish | Galvanized Zinc |
| Inner Length [Nom] | 1 7/16 in |
| Inner Width [Nom] | 31/32 in |
| Locking Type | Threaded Pin |
| Material | Forged Carbon Steel |
| Opening Size [Nom] | 21/32 in |
| Pin Size [Nom] | 7/16 in |
| SKU Group Auto-Id | 203785 |
| Type | Screw Pin Shackle |
| Wt. Cap. [Max] | 0.3 lb |
| Working Load Limit | 2,000 lb |
| Wt. | 0.3 lb |
