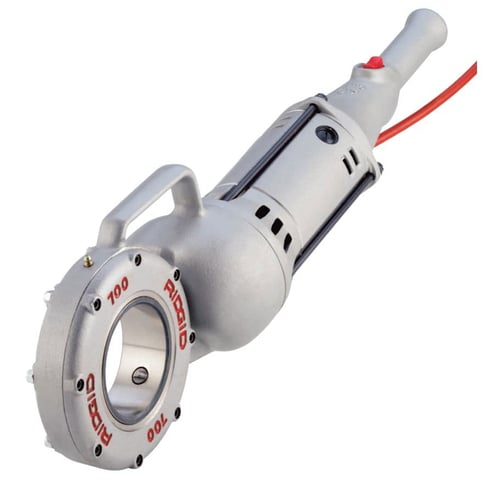

Model 700 Power Drive/Hand Held Threader, 1/8 in to 2 in Pipe Cap, 115 V


Product Description

Heavy-duty hand-held power drive. Designed for RIDGID® Model 12-R die heads. Other RIDGID® die heads (OO-R, OO-RB, 11-R) can be used using adapters. It can also be used with 258/258XL pipe cutters. Double-throw reversible switch. Spur gear reduction face gear drive, spring-loaded adapter pawls, and hardened steel spindle gear. Cast aluminum body.

Specifications

Amps [Nom] 13 A
Frequency [Max] 60 Hz
Frequency [Min] 50 Hz
Includes 700 Power Drive; Die Head/Dies Sold Separately
Length [Nom] 28-1/4 in
Phase Single Phase; Universal
Pipe Cap. [Max] 2 in
Pipe Cap. [Min] 1/8 in
Power Cap. [Max] 1/2 hp
Rod Diam. - TPI 1/4 in to 1 in with 00-RB Die Heads
SKU Group Auto-Id 208709
Speed [Nom] 36 RPM
Voltage [Nom] 115 V
Wt. 25 lb
AmpsNom 13 A
FrequencyMax 60 Hz
FrequencyMin 50 Hz
Includes 700 Power Drive; Die Head/Dies Sold Separately
LengthNom 28-1/4 in
Phase Single Phase; Universal
PipeCapMax 2 in
PipeCapMin 1/8 in
PowerCapMax 1/2 hp
SKUGroupAuto-ID 208709
VoltageNom 115 V
RodDiam-TPI 1/4 in to 1 in
SpeedNom 26 to 30 RPM
Type Power Drive
