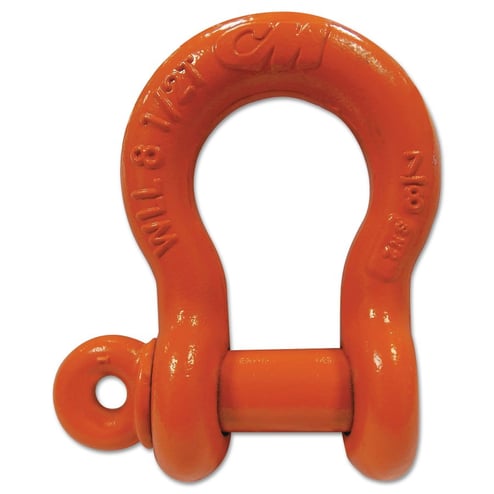

Screw Pin Anchor Shackle, 1.28 in Opening, 3/4 in Bail Size, 6-1/2 t, Orange Paint


Product Description

All shackle bodies and pins are forged from alloy steel, heat treated and tempered. Marked with size (inches and millimeters) and working load limit in tons. Ultimate strength equals 5 times working load limit. Bolt, nut, and cotter shackles have thread protected ends and are 100% proof tested. Standard industry tolerances apply. Built-in Distortion Detectors (3/8 inch to 2 inch). When ordering, specify galvanized (G) or painted (P).

Specifications

Bail Size 3/4 in
Finish Orange Paint
Locking Type Threaded Pin
Material Carbon Steel
Opening Size [Nom] 1.28 in
Type Screw Pin Shackle
Working Load Limit 6-1/2 t
