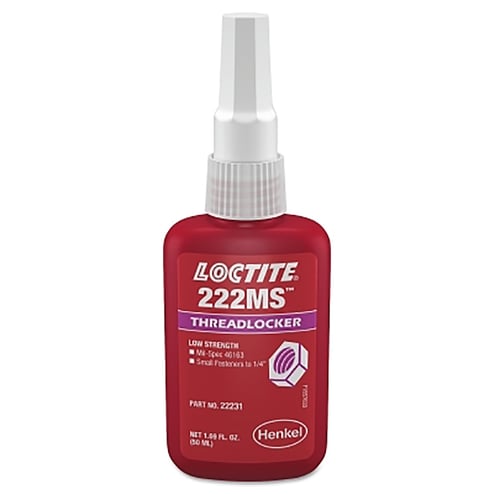

222MS™ Threadlocker, Low Strength/Small Screw, 0.5 mL, 1/4 in dia or Smaller, Purple
222MS™ Threadlocker, Low Strength/Small Screw, 0.5 mL, 1/4 in dia or Smaller, Purple
SKU: 442-231483
Manufacturer Part Number: 231483
Product Description
Specifications
| Applications | Locking and Sealing Fasteners up to 1/4 in dia |
| Capacity Vol. [Nom] | 0.5 mL |
| Chemical Compound | Acrylic; Dimethacrylate Ester |
| Color | Purple |
| Curing Method | Anaerobic |
| FixCureTimeTemp | 10 min @ 77° F |
| FullCureTimeTemp | 24 hr @ 77° F |
| Gap Fill [Max] | 0.005 in |
| Odor/Scent | Characteristic |
| Packing Type | Capsule |
| Physical Form | Liquid |
| Resistance | Corrosion; Rust |
| SKU Group Auto-Id | 206843 |
| Temp. Range [Max] | 300° F |
| Temp. Range [Min] | -65° F |
| Thread Size [Max] | 1/4 in |
| Thread Size [Min] | < 1/4 in |
| Torque (Break) | 53 in·lb on M10 Steel |
| Torque (Prevail) | 30 in·lb on M10 Steel |
| Applications | Locking and Sealing Fasteners up to 1/4 in dia |
| CapacityVolNom | 0.5 mL |
| ChemicalCompound | Acrylic; Dimethacrylate Ester |
| Color | Purple |
| CuringMethod | Anaerobic |
| FixCureTimeTemp | 10 min @ 77° F |
| FullCureTimeTemp | 24 hr @ 77° F |
| GapFillMax | 0.005 in |
| OdorScent | Characteristic |
| PackingType | Capsule |
| PhysicalForm | Liquid |
| Resistance | Corrosion; Rust |
| SKUGroupAuto-ID | 206843 |
| TempRangeMax | 300° F |
| TempRangeMin | -65° F |
| ThreadSizeMax | 1/4 in |
| ThreadSizeMin | < 1/4 in |
| TorqueBreak | 53 in·lb on M10 Steel |
| TorquePrevail | 30 in·lb on M10 Steel |
| ViscosityMax | 5,000 cP |
| ViscosityMin | 1,200 cP |
