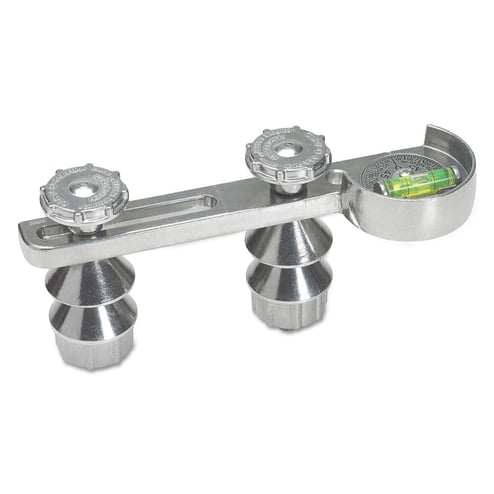

Flange Level, 9-1/4 in L, 1 Vial, Aluminum


Product Description

Used as a dial degree utility level or two-holing flange alignment. Protective housing contains an adjustable DSL. Fitted with a threaded , self-aligning conical spacer and conical nut and bolt units for fastening to a pipe flange. One nut and bolt is stationary, other slides.

Specifications

Accuracy 2.5 degrees
Body Material Aluminum
Height [Nom] 2 in
Includes (2) Threaded, Self-Aligning Conical Spacers;(2) Conical Nuts;(2) Bolt Units
Length [Nom] 9-1/4 in
Material Aluminum
No. of Vials 1
Thickness [Nom] 1/2 in
Type Dial-Angle-Flange
Width [Nom] 1/2 in
Wt. 0.38 lb
