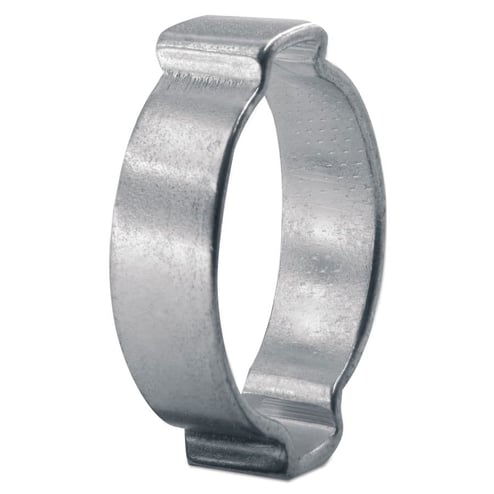

2-Ear Zinc-Plated Hose Clamp, 3/4 in OD, 0.638 in to 0.787 in dia, 0.335 in W, Steel


Product Description

Compact one-piece clamp for robust, secure connections. Fast and simple installation, visible deformation provides evidence of proper closure. Deburred edges reduce risk of damage to parts being clamped. Provides a degree of elasticity to accommodate changes in size of the parts being joined.

Specifications

Applications Hose; Tubing
Clamp Diam [Max] 0.787 in
Clamp Diam [Min] 0.638 in
Hose O.D. [Max] 3/4 in
Locking Type 2-Ear Crimp
Material Steel Material No 1.0338 / SAE 1008/1010; Zinc-Plated
Quantity 100/BG
SKU Group Auto-Id 177352
Thickness [Nom] 0.059 in
Width [Nom] 0.335 in
Applications Hose; Tubing
ClampDiamMax 0.787 in
ClampDiamMin 0.638 in
HoseODMax 3/4 in
LockingType 2-Ear Crimp
Material Steel Material No 1.0338 / SAE 1008/1010; Zinc-Plated
Quantity 100/BG
ThicknessNom 0.059 in
WidthNom 0.335 in
