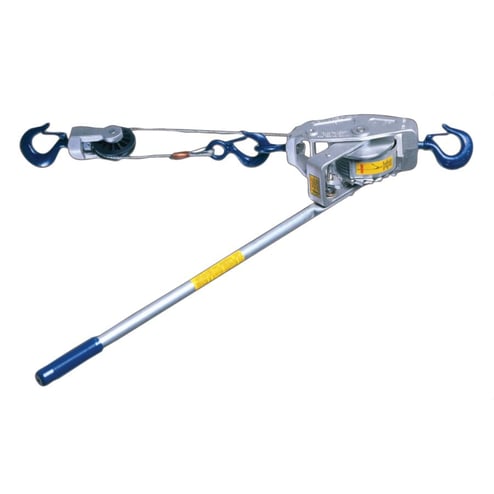

Cable Ratchet Hoist-Winch, 1-1/2 Ton, 10 ft Lifting Height, 97 lbf


Product Description

Exclusive drum anchor - swaged ball shank terminal locks cable securely in drum and allows for full extension of cable. Proprietary reversible handle - always a downward pull, switches positions in seconds. Cable end has hydraulically crimped copper sleeve. Interlocking pawl system will not slip. Self-storing aircraft cable. Self lubricating bearings.

Specifications

Cable Length [Nom] 11.6 ft
Cable/Wire Size [Nom] 7/32 in
Distance Between Hooks [Min] 16 in
Frame Material Aluminum Alloy
Lifting Height/Take-Up [Nom] 10 ft
Material Aluminum Alloy
Mounting Hooks
Pull Force [Max] 97 lbf
SKU Group Auto-Id 181996
Type Small Frame
Wt. Cap. [Nom] 1-1/2 ton
CableLengthNom 11.6 ft
CableWireSizeNom 7/32 in
DistanceBetweenHooksMin 16 in
FrameMaterial Aluminum Alloy
LiftingHeightTake-UpNom 10 ft
Material Aluminum Alloy
Mounting Hooks
PullForceMax 97 lbf
Type Small Frame
WtCapNom 1-1/2 ton
